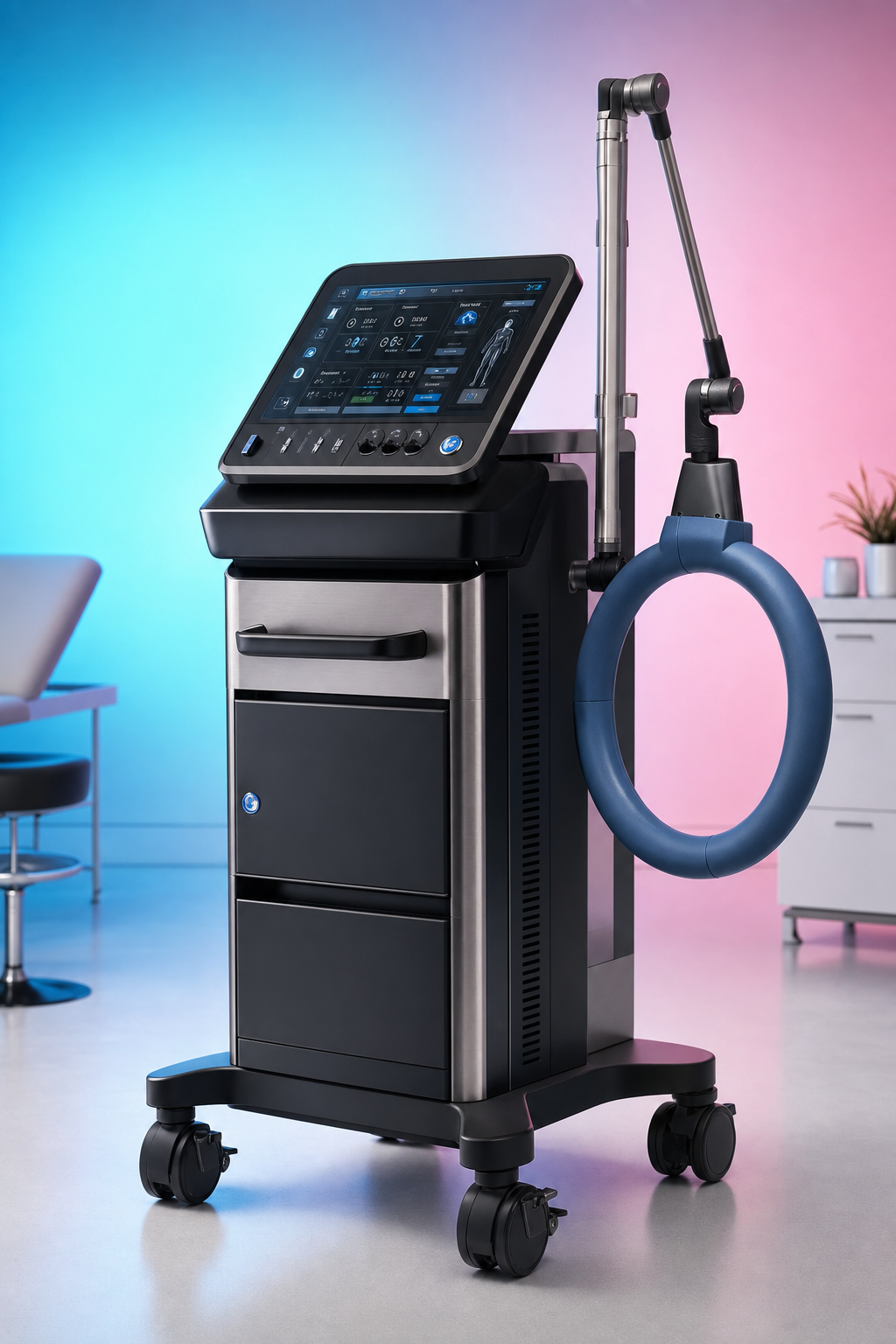

PMST LOOP PRO MAX
High-intensity PEMF for pain relief and immune system support. The Clinical Hyper PMST LOOP PRO MAX delivers 850W of peak power and up to 24,700 Gauss of magnetic field intensity — engineered for chiropractors, sports medicine practitioners, physical therapists, veterinary clinicians, and elite recovery centers that need clinical-caliber PEMF output in a single versatile system.
Prefer to talk first? Call 1-855-679-4268 or email clinicalhyperbaric@gmail.com for a private consult.
The PMST LOOP PRO MAX, in motion.
Energy medicine, grounded in physics.
PMST LOOP is a research-proven, natural, non-invasive form of energy medicine — High Intensity Pulsed Electromagnetic Field Therapy. The system uses a control unit to administer precise, natural pulsating magnetic fields to the body through various applicators: a full-body mat, localized pad applicators, ring-type loop applicators, and a cube applicator. Frequency and intensity are precisely controlled for each session.
The human body is electromagnetic in nature. The earth's electromagnetic fields interact with our body's own magnetic fields on a cellular level. The cell membrane has its own voltage and channels through which electromagnetic energy flows. These channels can be open (action potential — carrying electrical charges through) or closed (resting potential). Our cell membranes require a charge to open these channels, allowing ions to flow into the cells — a process that produces movement of charge and creates a magnetic field across the membrane.
PMST LOOP delivers pulsed magnetic fields that interact with these cellular channels. The system's high oscillation frequency of 4,500 Hz enables 40% stronger output than standard PEMF systems, with a penetration depth of 10–15 cm — reaching cellular and nerve levels rather than only addressing surface muscles. PMST LOOP is low-frequency pulse with high-frequency damping oscillation, delivering stronger magnetic field strength and deeper penetration for more effective energy transduction.
PMST LOOP has five different frequency settings. Single pulse requires a longer treatment interval than standard PEMF therapy — the oscillation wave transfers magnetic energy deeper into body cells. Penetration depth depends on both the intensity setting and the diameter of the applicator chosen for the session.
- Non-invasive — applied externally through loop attachments, no needles or chemicals
- 40% stronger than standard PEMF — 4,500 Hz oscillation frequency enables deeper field penetration
- 10–15 cm penetration depth — reaches cellular and nerve structures, not just surface tissue
- Dual protocol platform — human therapy and animal treatment programs in one unit
- Five applicators included — from whole-body mat to joint-targeted butterfly loop
- No downtime — clients typically remain clothed and resume normal activity immediately
Your cells run on electrical charge. PMST LOOP restores it.
The magnetic energy effortlessly passes through all tissues and cells for deep support — giving the body more energy and vitality. It does not heat or treat disease. What it does is jump-start the body's own natural processes. The body is self-healing, self-regulating, and self-regenerating: given the proper energy and elements, it can support tissue health and comfort significantly.
Pulsed magnetic therapy has a distinct advantage over other forms of energy medicine — lasers, TENS units, and similar modalities. The human body is transparent to magnetic fields. This means pulsed magnetic fields can penetrate deep into the body and interact with cells at the core level without thermal effects.
8 minutes with PMST LOOP:
Recharge your 100 trillion cells — improving ATP production, increasing oxygenation, enhancing circulation, promoting hydration, facilitating detoxification, and improving overall absorption of nutrients.
What you actually get.
850W peak power output
Delivers high-intensity electromagnetic fields capable of reaching 10–15 cm depth — far beyond consumer and entry-level clinical devices. The power level practitioners need for serious clinical outcomes.
Up to 24,700 Gauss magnetic intensity
Among the highest output levels in clinical PEMF systems. The Butterfly Loop attachment reaches 24,700 Gauss for targeted joint and small-area treatment, delivering concentrated field energy precisely where needed.
4,500 Hz oscillation — 40% stronger than PEMF
The high oscillation frequency enables PMST LOOP to deliver 40% more effective output than standard PEMF, penetrating to cellular and nerve levels rather than just addressing surface muscle tissue.
Dual human & animal protocol platform
A single machine supports both human therapy and animal treatment protocols, switchable via the touch interface. One system serves human clients and veterinary patients alike.
12.1-inch intelligent touch interface
Streamlined 12.1-inch (30.7 cm) color touch screen with built-in application guidance, default parameters, and clinical protocol suggestions. Pre-configured frequency protocols at 2, 4, 8, and 10 Hz for fast, consistent session setup.
High-intensity PEMF for pain and immune system.
Three core benefit domains supported by high-intensity pulsed electromagnetic field therapy at the 850W clinical level.
- Significantly reduces pain
- Relaxes muscles
- Reduces muscle tension and spasms
- Relieves migraines and tension headaches
- Supports immune system function
- Improves lymph circulation
- Enhances cellular detoxification
- Increases cellular energy levels
- Boosts overall energy and vitality
- Floods the body with electrons
- Energizes electron transport chain
- Stimulates ATP production in the mitochondria
These statements describe general wellness benefits associated with PEMF therapy. Clinical Hyperbaric sells this device as wellness equipment. These are not medical claims and not medical advice.
What the PMST LOOP PRO MAX actually delivers.
A dedicated high-intensity PEMF system. These are the therapy modalities the PMST LOOP PRO MAX performs — pure electromagnetic field therapy across multiple delivery modes, frequencies, and applicator formats.
Pulsed electromagnetic field — foundational modality
High-intensity bursts · 850W · 1–10 Hz
Sustained uninterrupted electromagnetic output
Pre-set 2, 4, 8 & 10 Hz clinical protocols
Human & animal protocol platform in one unit
10–15 cm depth · cellular & nerve level
Seven steps. Every session.
The PMST LOOP PRO MAX is engineered for efficient clinical workflow. Follow these steps to ensure safe, consistent output every time.
Connect applicator first
Do not power on the unit before the applicator is fully connected. The system requires an attached applicator before initialization to protect both the device and the operator.
Plug in the applicator
Select the appropriate attachment for the target area — Large Loop, Butterfly Loop, Dual Paddle, Mattress, or Cube. Plug the applicator connector into the main unit port securely.
Confirm secure connection
Verify the applicator connector is fully seated. A loose connection can affect output consistency. Check the cable is routed safely away from the client's path before proceeding.
Power on
Power on the main unit using the power button. The 12.1-inch touch screen will initialize, displaying the home screen with protocol and program selection options.
Input access code & select program
Enter the operator access code on the touch screen. Select the appropriate program — Human therapy or Animal treatment. The system displays pre-loaded default parameters and built-in application guidance for the selected program.
Set intensity, frequency & duration
Dial in session parameters: output intensity, pulse frequency (1–10 Hz, or select a pre-configured protocol at 2, 4, 8, or 10 Hz), output mode (Pulsed or Continuous), and session duration. Adjust to client tolerance.
Apply to body — start treatment
Position the applicator in close contact with the target area. Start the session. The system auto-monitors output and delivers the session at the selected parameters. At session end, the system completes automatically — remove the applicator and power down.
Frequency selection guides outcomes.
Different pulse frequencies interact with different tissue targets. The PMST LOOP PRO MAX delivers 1–10 Hz with pre-set protocol guidance built into the touch interface.
| Frequency | Associated Wellness Effect |
|---|---|
| 2 Hz | Nerve regeneration support |
| 7 Hz | Bone healing support |
| 10 Hz | Ligament healing support |
| 15–30 Hz | Stimulation of capillary formation |
A PEMF frequency of 2 Hz is associated with nerve regeneration support; 7 Hz with bone growth stimulation; 10 Hz with ligament healing; and 15–30 Hz with capillary formation and skin wellness applications. These references are provided for practitioner orientation and scope-of-practice mapping — they are not medical claims.

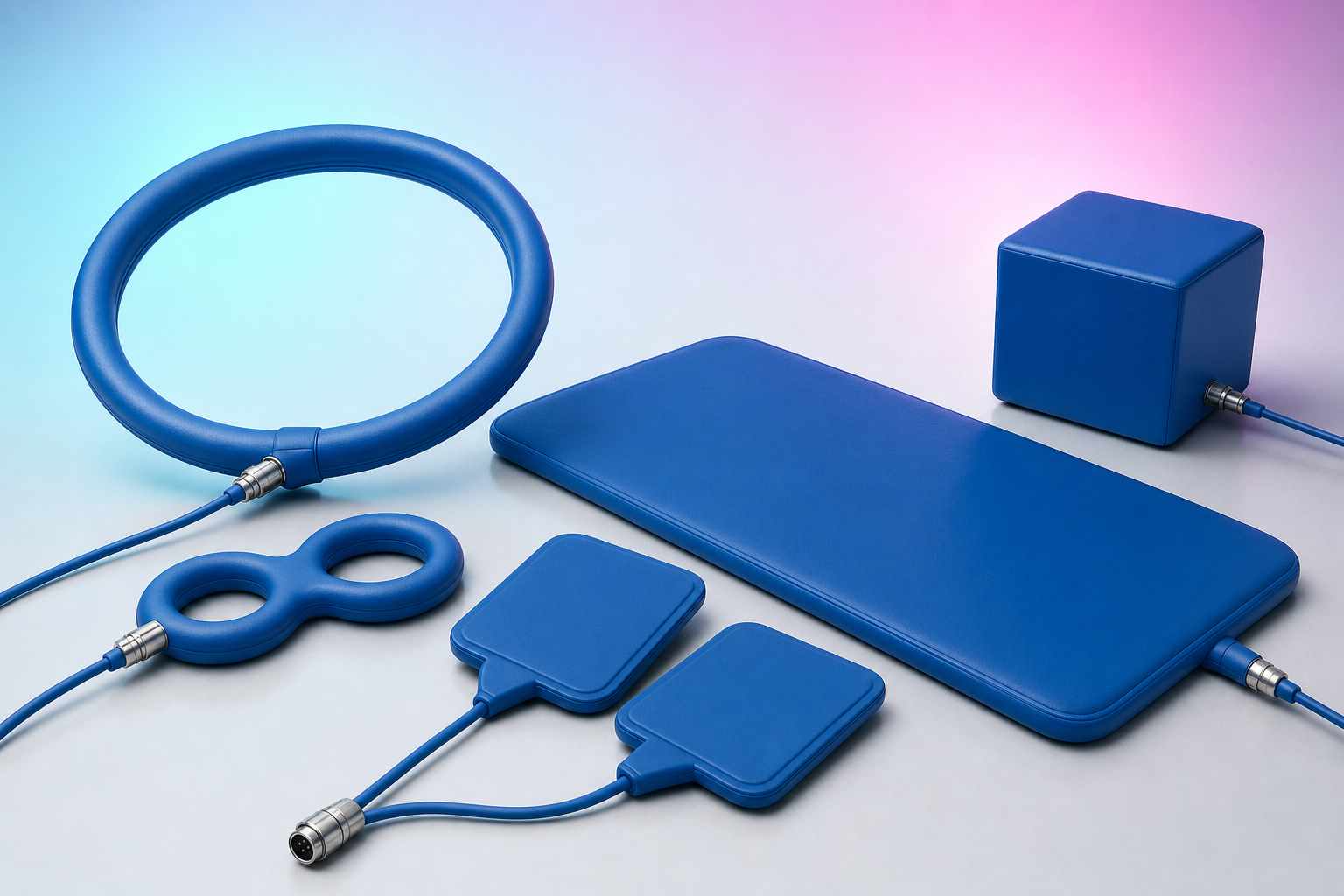

Five attachments. Full practice coverage.
Each attachment is engineered for a specific class of body area. All five are included with the PMST LOOP PRO MAX. Additional optional applicators are available separately — see note below.
Large Loop (30 cm)
Inner diameter: 11.8 in (30 cm). Output: up to 8,900 Gauss. Designed for large body surface areas and large muscle groups — chest, back, abdomen, and thighs. The recommended starting attachment for full-torso and lower-body applications.
Butterfly Loop (15 cm)
Inner diameter: 5.9 in (15 cm). Output: up to 24,700 Gauss — the highest-intensity attachment in the set. Double-coiled, high-power design for targeted joint pain relief: shoulders, knees, ankles, elbows, and wrists. Maximum field concentration for small treatment areas.
Dual Paddle (20 cm × 2)
Inner diameter: 7.9 in (20 cm) per paddle. Output: up to 19,800 Gauss. Flat paddle design for comfortable application over the thigh, back, hip, and abdomen. The dual format enables bilateral coverage simultaneously or treatment from both sides of a limb.
Mattress (140 × 64 cm)
Mat dimensions: 55.1 × 25.2 in (140 × 64 cm). Output: up to 8,300 Gauss. Full-body PEMF sessions in a relaxed, resting position. Supports improved sleep, reduced anxiety, and whole-body metabolic wellness. Ideal as an intake or close-of-visit modality.
Cube (40 cm)
Cube size: 15.7 in (40 cm). Specifically designed for pelvic floor muscle support, hip muscle comfort, and urinary wellness applications. The cube geometry allows the client to sit on or position themselves around the attachment for targeted pelvic-region coverage.
The PMST LOOP system supports additional optional applicators not included with the PRO MAX. These include: Single Loop Small (22 cm, localized joint use for neck, shoulders, knees, wrists), Butterfly Loop Small (10 cm, ultra-localized deep treatment for fingers, ankles, elbows), TMS attachment (10 cm, for head-area applications including focus and memory support), Belt (35 × 70 cm, low back applications), and Double Layer Mattress (up to 180 × 64 cm, five-channel). Contact Clinical Hyperbaric to discuss optional attachment availability.
PMST LOOP PRO MAX — engineering detail.
All specs reported in imperial and metric. Final figures confirmed at delivery.
| Model | PMST LOOP PRO MAX |
|---|---|
| Peak power output | 850W |
| Maximum magnetic intensity | Up to 24,700 Gauss (Butterfly Loop) |
| Pulse frequency range | 1–10 Hz |
| Oscillation frequency | 4,500 Hz (4.5 kHz) |
| Output modes | Pulsed mode, Continuous mode |
| Waveform types | 5 |
| Channels | 1 |
| Display interface | 12.1-inch (30.7 cm) color touch screen |
| Application guidance (built-in) | Yes — pre-loaded clinical protocols |
| Programs | Human therapy + Animal treatment (dual platform) |
| Penetration depth | 10–15 cm |
| Large Loop inner diameter | 11.8 in (30 cm) |
| Butterfly Loop inner diameter | 5.9 in (15 cm) |
| Dual Paddle inner diameter | 7.9 in (20 cm) per paddle |
| Mattress dimensions | 55.1 × 25.2 in (140 × 64 cm) |
| Cube size | 15.7 in (40 cm) |
| IP rating | IP31 |
| Fuse | 15 Amp |
| Plug type | Integrated |
| Package dimensions | 29.5 × 22.8 × 20.5 in (75 × 58 × 52 cm) |
| Gross weight | 77.2 lb (35 kg) |
Everything you need to start treating.
- PMST LOOP PRO MAX main unit
- Large Loop attachment (11.8 in / 30 cm — up to 8,900 Gauss)
- Butterfly Loop attachment (5.9 in / 15 cm — up to 24,700 Gauss)
- Dual Paddle attachment (7.9 in / 20 cm per paddle — up to 19,800 Gauss)
- Mattress attachment (55.1 × 25.2 in / 140 × 64 cm — up to 8,300 Gauss)
- Cube attachment (15.7 in / 40 cm — pelvic floor and hip applications)
- 12.1-inch intelligent touch screen controller with pre-loaded clinical protocols
- Built-in application guidance for all standard protocols
- Operator documentation and clinical protocol reference guide
- Delivery and placement coordination from Clinical Hyperbaric
- US-based warranty support (Holiday, FL)
Where PMST LOOP PRO MAX fits.
The PMST LOOP PRO MAX is built for professional clinical environments where PEMF output, versatility, and reliability matter. Ideal settings include:
- Chiropractic clinics
- Sports medicine practices
- Physical therapy and rehabilitation centers
- Veterinary and equine clinics
- Elite athletic recovery centers
- Premium home wellness installations where clinical-grade output is required
Clinical Hyperbaric sells the PMST LOOP PRO MAX as wellness equipment. We do not market it as a medical device, and we do not bill insurance. Protocol suggestions are provided so practitioners can map their own treatment language inside their own scope of practice — they are not claims of clinical efficacy and not medical advice.
PMST LOOP PRO MAX in context.
Owner manual & ROI projections.
Download the full Clinical Hyperbaric owner & operator manual along with revenue projections for your practice. A printed manual ships with every unit.
27-page owner manual · revenue modeling for clinical PEMF deployment
Ready to bring clinical-grade PEMF into your practice?
Order now and our team will coordinate delivery, placement, and setup orientation so your practice is ready to treat from day one. Direct from Clinical Hyperbaric — no middlemen, one accountable team in Holiday, FL.
