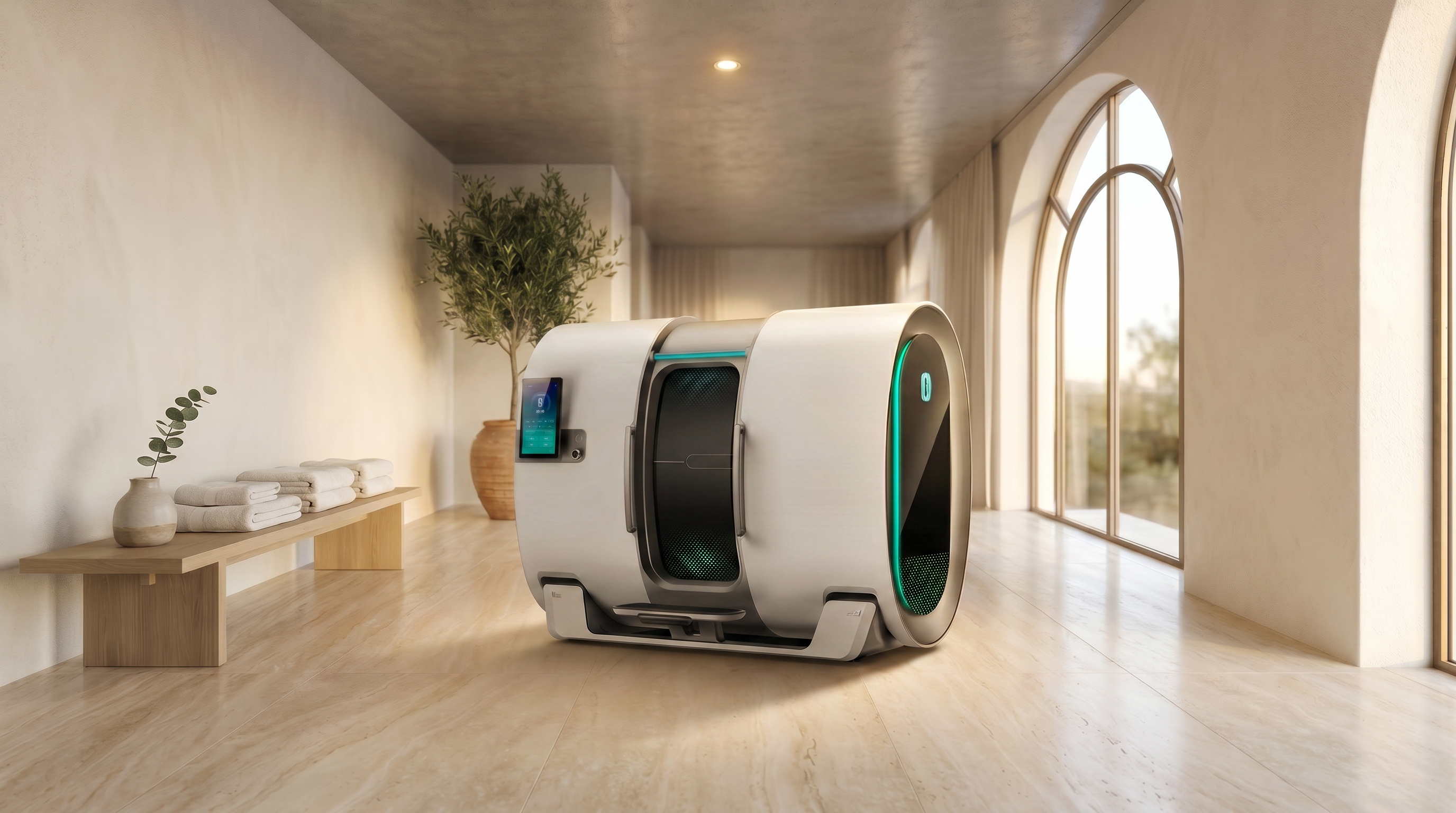

Helix Pro
Helix Pro is our flagship unibody hyperbaric chamber — delivered fully assembled, calibrated, and ready to commission. Pressurization from 1.1 to 2.0 ATA with 93% medical-grade oxygen delivery at 10 L/min, all housed in a stainless-steel pressure vessel finished to luxury-appliance standards.
Prefer to talk first? Call 1-855-679-4268 or email clinicalhyperbaric@gmail.com for a private consult.
What you actually get.
Unibody construction
Single welded stainless-steel pressure vessel — no field assembly, no seam-by-seam pressure decay, no surprises at commissioning.
Medical-device-grade core
1.1–2.0 ATA operating range, 93 ± 3% oxygen concentration, 10 L/min sustained flow, dual pressure-relief valves, and 150% pressure-redundancy on the vessel itself.
Whisper-quiet at depth
Under 50 dB at full operating pressure. Suitable for spa rooms, executive offices, and high-end residential installs without acoustic isolation.
Premium occupant experience

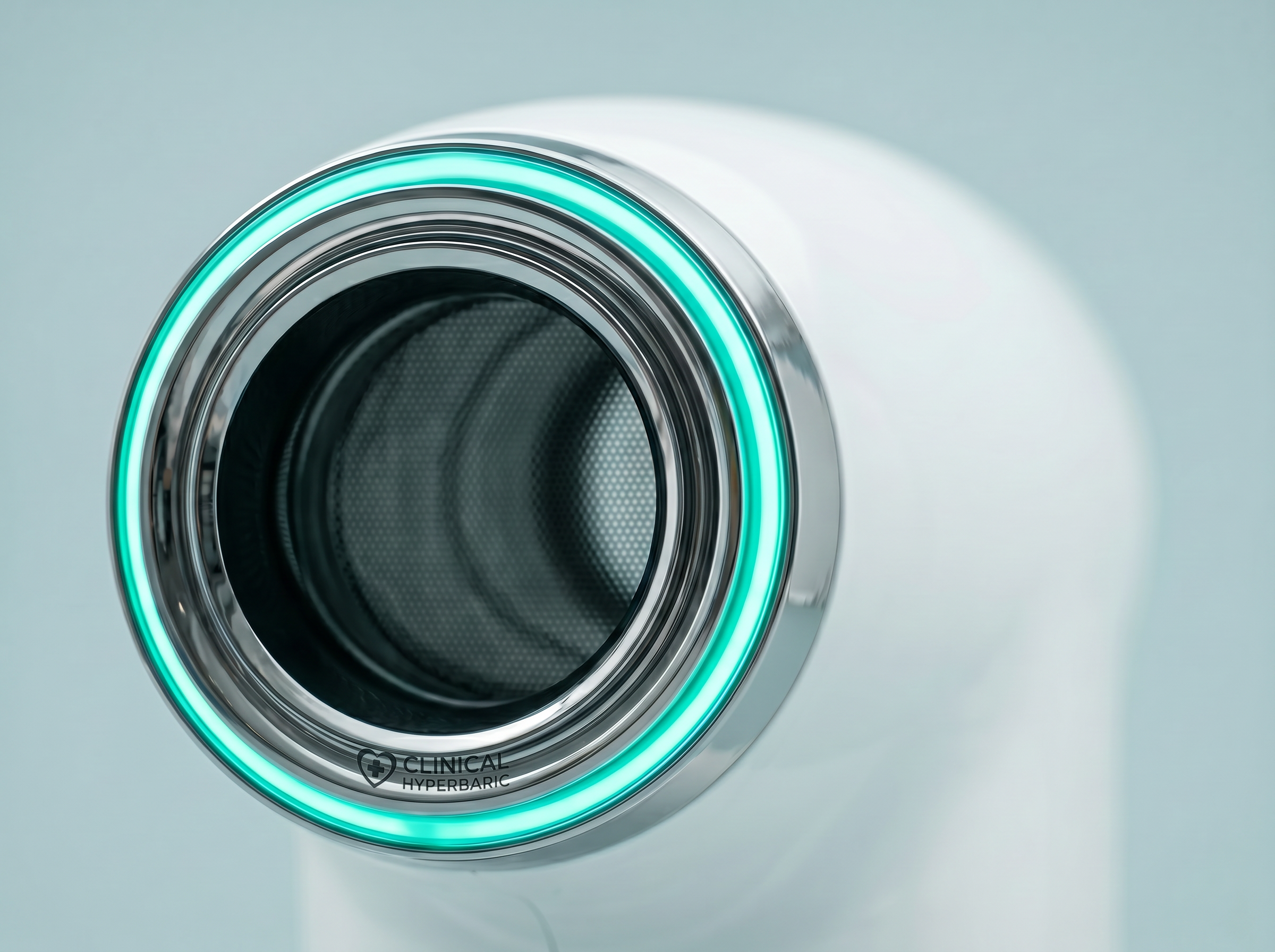

Stainless-steel interior, ambient lighting, integrated comms, and a 15 mm reinforced hatch with smart safety interlocks.
White-glove install
Configured, crated, and delivered to your facility with our installation partner. We coordinate freight, rigging, electrical signoff, and first-pressure commissioning.
Helix Pro — engineering detail.
All specs reported in imperial and metric. Final figures confirmed on the spec sheet at install.
| Format | Unibody — fully assembled |
|---|---|
| Operating pressure | 1.1–2.0 ATA (16.2–29.4 psi / 111.5–202.7 kPa) |
| Pressure-vessel rating | Tested to 150% of max operating pressure |
| Oxygen concentration | 93 ± 3% medical-grade |
| Oxygen flow | 10 L/min (2.64 gal/min) |
| Sound level | < 50 dB at full operating pressure |
| Chamber weight | 2,028 lb (920 kg) |
| Footprint | 84.2 × 51.2 × 73.4 in (2138 × 1300 × 1865 mm) |
| Construction | Stainless steel pressure vessel · 15 mm reinforced hatch |
| Safety | Dual pressure-relief valves · smart hatch interlocks · emergency-vent control |
| Power | 220–240 V AC, dedicated circuit (electrical signoff included in install) |
| Certifications | Manufactured to medical-device-grade quality standards · CE-marked components |
Everything you need to commission.
- Helix Pro unibody hyperbaric chamber
- Integrated oxygen concentrator and flow control
- Touchscreen operator console with session presets
- 15 mm reinforced hatch with smart safety interlocks
- Dual pressure-relief safety system
- Operator and occupant comms
- White-glove install coordination (freight, rigging, commissioning)
- Helix Pro Owner Manual (PDF)
- Founders Bundle: priority service, training, and lifetime firmware updates
Where Helix Pro fits.
Wellness centers, executive recovery suites, premium spa installations, longevity clinics, and high-end residential wellness rooms where a fully assembled, commission-ready chamber is preferred over a modular build.
Clinical Hyperbaric sells the Helix Series as wellness equipment. We do not market it as a medical device, and we do not bill insurance. The CPT reference below is provided so practitioners can map their own treatment language inside their own scope of practice — it is not a claim of reimbursability and not medical advice.
CPT reference (informational only): 99183 — physician attendance and supervision of hyperbaric oxygen therapy, per session. Reimbursability is determined by payer, jurisdiction, and credentialing — not by us.
Helix Pro in context.

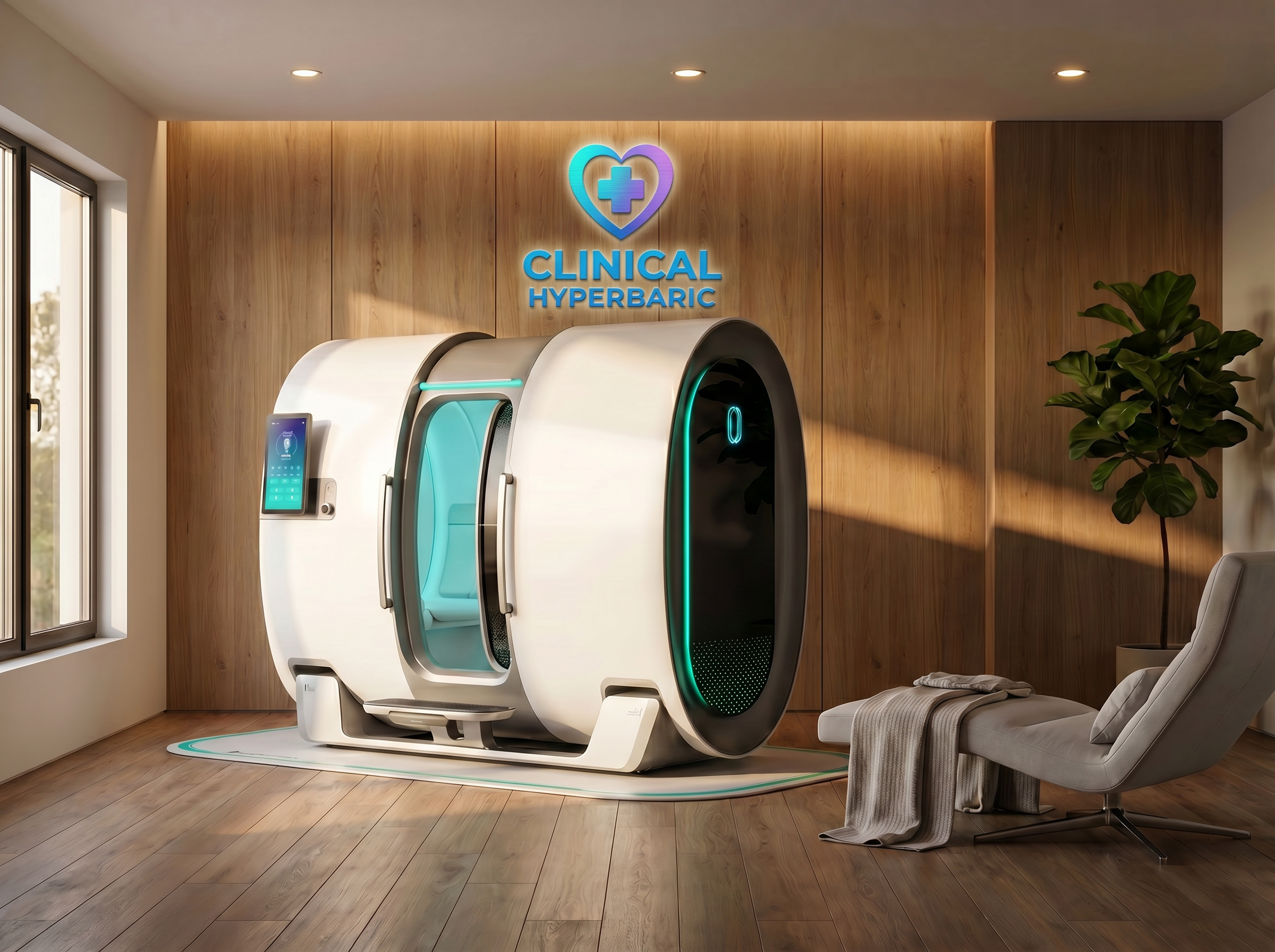

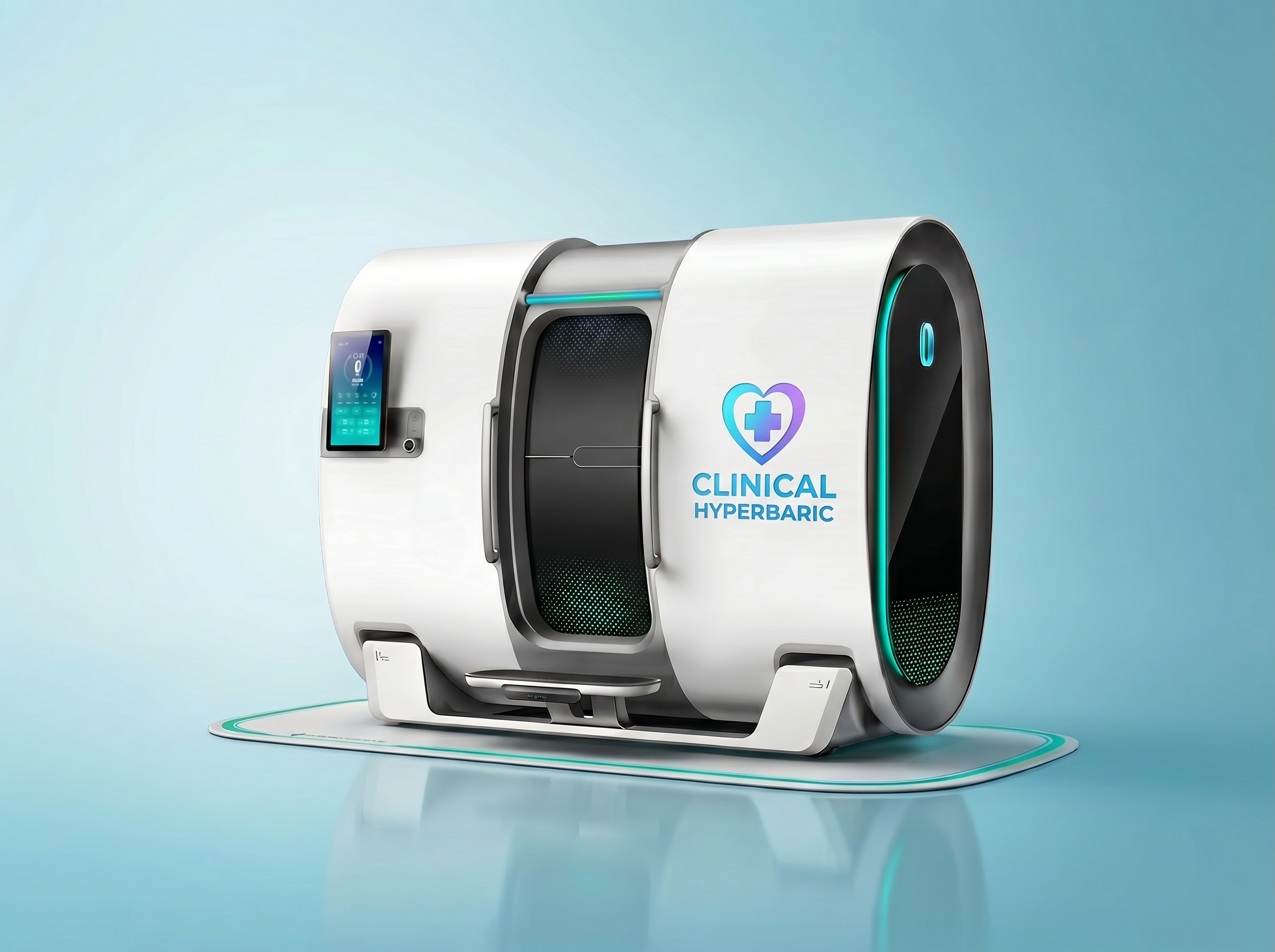

Renders shown. Final finish and lighting are confirmed at pre-install walkthrough.
Owner manual & technical files.
Full owner documentation is published below. We’ll also ship a printed copy with every unit.
Manual hosted on Shopify CDN · approximately 12 MB
Ready to bring Helix Pro into your facility?
Pre-order now to lock in Founders Bundle pricing, priority install scheduling, and lifetime firmware updates. We’ll walk your floor plan, electrical, and ventilation before anything ships.
